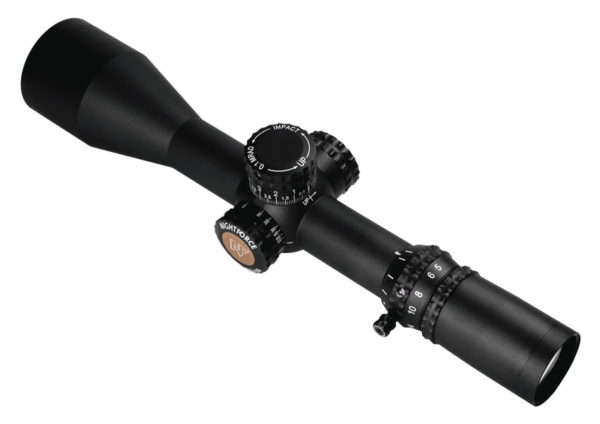

Nightforce ATACR – 5-25×56 – Zerostop – .25 MOA – DigIllum – PTL – MOAR-T
The Nightforce ATACR – 5-25×56 “Enhanced” Riflescope includes the Nightforce Hi-Speed adjustments with patented ZeroStop, and .25 MOA (30 MOA per revolution) increments. A capped windage adjustment helps prevent accidental adjustment in the field. The parallax adjustment is marked with approximate numbered distances and is coupled with DigIllum digital reticle illumination. The eyepiece features enhanced engraving, an integrated Power Throw Lever (PTL) and an XtremeSpeed thread for making a fast diopter adjustment.
The 34mm tube allows 120 MOA of elevation adjustment. Fully multi-coated ED glass results in light transmission values of over 90%, brilliant images and exceptional color contrast. A magnification range of 5x to 25x, and a wider field of view as a result of its unique optical prescription (17.96 feet at 5x) will cover virtually any situation a shooter could encounter.
Tenebraex Flip Covers are now included with ATACR™ riflescopes.
Model: C555
| SPECIFICATIONS | ATACR 5-25 X 56 |
|---|---|
| Focal Plane | Second |
| Magnification Range | 5-25x |
| Objective lens diameter | 56mm |
| Tube diameter | 34 mm/1.34 in |
| Internal adjustment range (MOA) | e: 120 MOA w: 60 MOA |
| Click value | .250 MOA |
| Calibrated Ranging Power | 25x |
| Parallax adjustment | 45 yd–∞ |
| Exit pupil diameter | 5x: 10.52 mm 25x: 2.28 mm |
| Eye relief | 90 mm/3.54 in |
| Field of view @100 yards/100 meters | 5x: 17.96 ft 25x: 4.92 ft 5x: 5.47 m 25x: 1.5 m |
| Objective outer diameter | 65 mm |
| Eyepiece outer diameter | 44 mm |
| Overall length (inches/mm) | 14.3 in/363 mm |
| Weight (ounces/grams) | 39 oz/1108g |
| Mounting length (inches/mm) | 6.13 in/156 mm |
| Front/Rear Mounting Length | 2.10 in/2.24 in |
| PTL (Power Throw Lever) | Standard |
| Reticle | MOAR-T™ |
| Illumination | Digillum |
| Elevation Feature | ZeroStop |

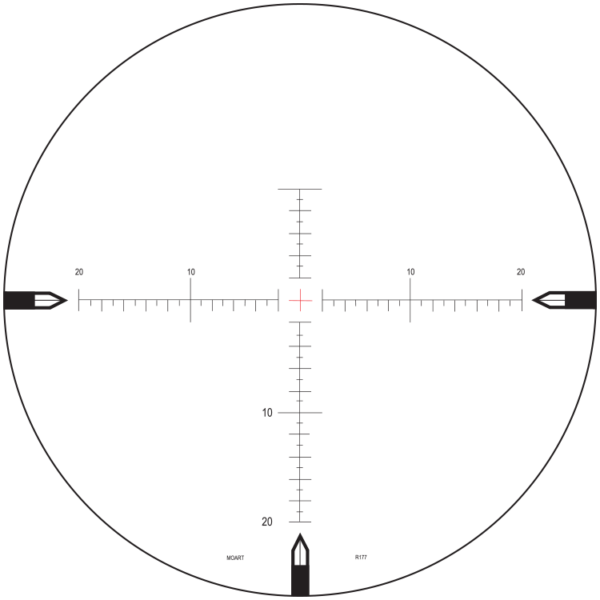

MOAR-T™ Reticle
Nightforce customers asked for a finer version of their MOAR™ reticle for even more precision at extreme ranges, and the new MOAR-T™ delivers. .0625 MOA lines, with 1 MOA elevation and windage markings. Allows accurate rangefinding and holdover estimation at the longest distances. Center Illumination only.
