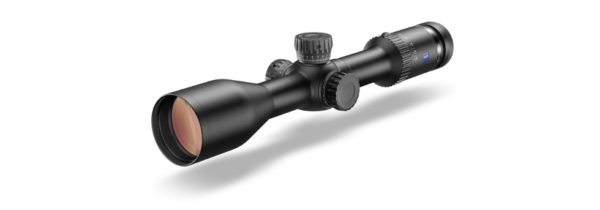

Zeiss Conquest V6 3-18×50 ZBR-2
The new riflescope with 6x zoom–The Zeiss Conquest V6 3-18×50 ZBR-2
The most versatile of the V6 line, this riflescope with 103 MOA elevation and 58 MOA windage adjustment is built to excel at mid- to longer range shooting distances.
The 3-18×50 is the perfect scope for the mobile Western hunter in pursuit of elk, antelope or mountain sheep. This compact and low profile scope also features ¼ MOA click adjustments, side parallax and is offered with the ZBR-2 reticle.
Made in Germany for the rugged demands of any hunting or shooting style, the new Conquest V6 with true 6x zoom and 30mm tube is engineered to reach beyond expectations. FL (Fluoride) Glass, enhanced T* lens coatings and LotuTec® protective coating from ZEISS provide industry-leading resolution and shooter accuracy.
Featuring new ballistic turret and ballistic reticle ZBR for long-distance hunting or shooting. For the hunter who demands versatility and uncompromised long-range capability, the ZEISS Conquest V6 is the scope that proves distance is nothing.
Features
- 30mm Center Tube: Constructed of aircraft grade aluminum; Allows for 103 MOA elevation adjustment for long range hunting and shooting; Windage adjustment of 58 MOA
- Fast and Precise: New Ballistic Turret with Ballistic Stop and multiple revolutions; ¼ MOA click adjustments, 80 clicks per rotation
- Made in Germany: Extremely reliable internal components; Precision mechanics; Flawless operation year after year
Reliability
Tested in the laboratory. Proven in nature.
Hunting optics are not a scientific instrument but tools which must function in every hunting scenario. If there is heavy rain when you are hunting, there is only one motto to go by: Persevere! The waterproofness of your optics should be the last thing on your mind.
- Shock
- Waterproofness
- Continuous Shock
- Temperature
- Corrosion
Technical Data
| Magnification | 3 | 18 |
| Effective lens diameter | 28.6 mm | 50 mm |
| Exit pupil diameter | 9.5 mm | 2.8 mm |
| Twilight factor | 8.5 | 30 |
| Field of view at 100 m | 12,4 m | 2,1 m |
| Angular field of view, real | 7.1° | 1.2° |
| Diopter range | -3/+2 dpt | |
| Eye relief | 90 mm | |
| Parallax setting | 45,7 – ∞ m | |
| Evaluation adjustment range | 103 MoA | |
| Windage adjustment range | 58 MoA | |
| Adjustment per click | 1/4 MoA | |
| Center tube diameter | 30 mm | |
| Eyepiece tube diameter | 45.5 mm | |
| Objective tube diameter | 56 mm | |
| Coating | LotuTec®/ ZEISS T* | |
| Nitrogen filling | yes | |
| Water resistance | 400 mbar | |
| Operating temperature | -25 / +50o C | |
| Length | 338 mm | |
| Weight | 630 g | |
| Reticle | ZBR-2 | |
| Order number | 522241 | |
Reticle: ZBR-2
ZEISS ZBR ballistic reticle features fixed MOA subtensions. The number followed by the reticle name (e.g ZBR-“2”) indicates the distance in MOA between the hashmarks [Distance “A” – e.g. “2” MOA]. The hashmarks on the horizontal and vertical crosshairs can be used for windage and elevation compensation, and for target ranging, when used with the optimum magnification setting stated in the charts.
