Zeiss Conquest V4 3-12×56 Z-Plex

Free 2-Day Shipping
  • Magnification: 3-12x
  • Effective lens diameter: 27.7-56mm
  • Central tube diameter: 30mm
  • Length: 368mm
  • Weight (w/o inner rail): 610g
  • Model: Conquest V4 (522921)
  • Reticle: Z-Plex


Email when stock available

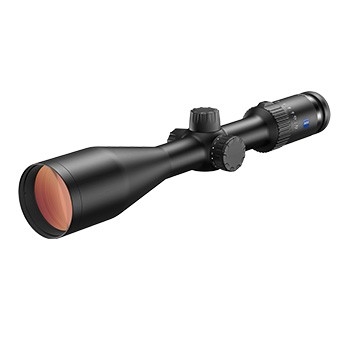

Zeiss Conquest V4 3-12×56 Z-Plex

A high-quality optic for rugged hunting use–The Zeiss Conquest V4 3-12×56 Z-Plex.

Uncompromising quality and ruggedness – the Conquest V4 line of high-performance riflescopes combines the tried-and-true ZEISS optics concept with a rugged and functional design. Equipped with 4x zoom and functional and fully reliable mechanics, these scopes set a new standard in their class.

This scope is suitable for precise aiming for long-range shooting in daylight . Thanks to the large-diameter lens and the Z-Plex reticle, high accuracy is guaranteed – even on small targets.


  • Functional Mechanical Parts (Unparalleled Reliability): The scope’s mechanical parts prove their worth in every situation that demands a quick reaction from the hunter.
  • Perfect for Small Targets:  Precise aiming for long-range shooting during daylight. The Z-Plex reticle makes it possible to aim with great precision at particularly small targets.


Tested in the laboratory. Proven in nature.

Hunting optics are not a scientific instrument but tools which must function in every hunting scenario. If there is heavy rain when you are hunting, there is only one motto to go by: Persevere! The waterproofness of your optics should be the last thing on your mind.Zeiss Conquest V4 3-12x56

  • Shock
  • Waterproofness
  • Continuous Shock
  • Temperature
  • Corrosion

Technical Data

Magnification 3 x 12 x
Effective lens diameter 27,7 mm 56 mm
Exit pupil diameter 9,2 mm 4,7 mm
Twilight factor 9,1 25,9
Field of view at 100m 12,7 m 3,2 m
Ojective viewing angle 7,2° 1,8°
Diopter adjustment range -3/+2
Eye relief 90 mm
Parallax-free 91,4 m
Adjustment range at 100 m 200 cm
Adjustment per click at 100 m 0,7 cm
Centre tube diameter 30 mm
Eyepiece tube diameter 44 mm
Objective tube diameter 62 mm
LotuTec® / Nitrogen filled ja / ja
Water resistance 400 mbar
Operating temperature -20/+55
Length 368 mm
Weight without inner rail 610 g

Reticle: Z-Plex

Zeiss Z-Plex


The equally fine Reticle 20 also sits in the 2nd image plane. It therefore offers particularly precise aiming for long-range shooting in daylight. With the 20, the posts are in the shape of arrows pointing to the fine lines in the middle. This makes it possible to aim with great precision at particularly small targets.
