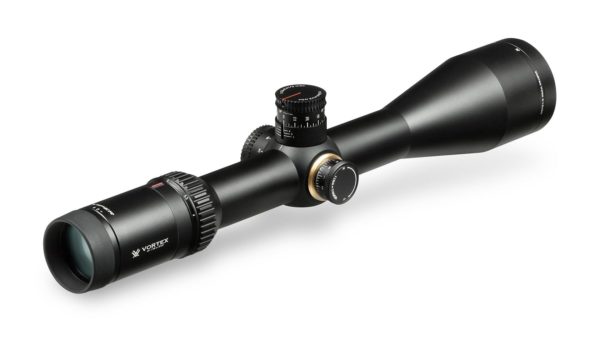

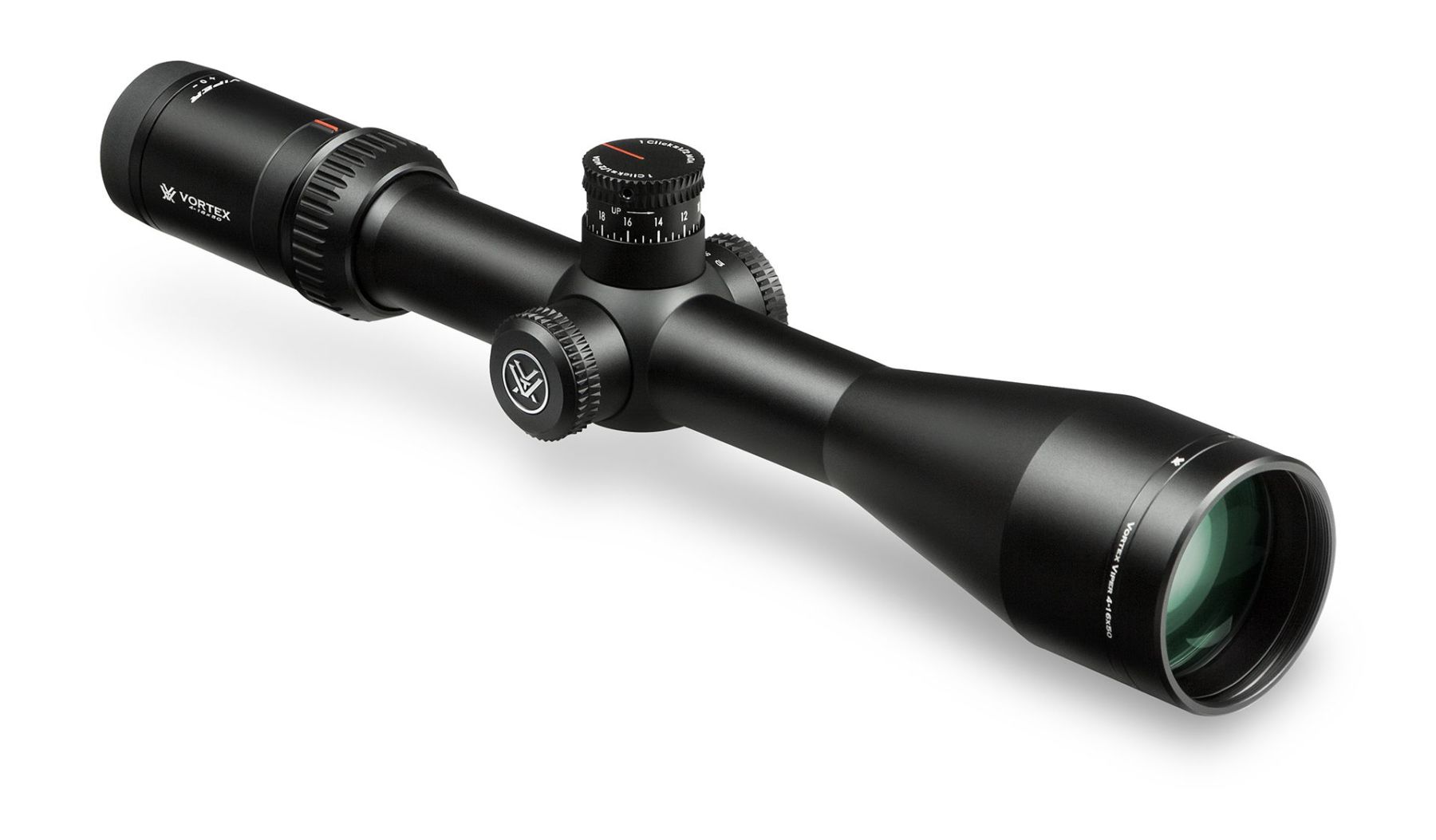

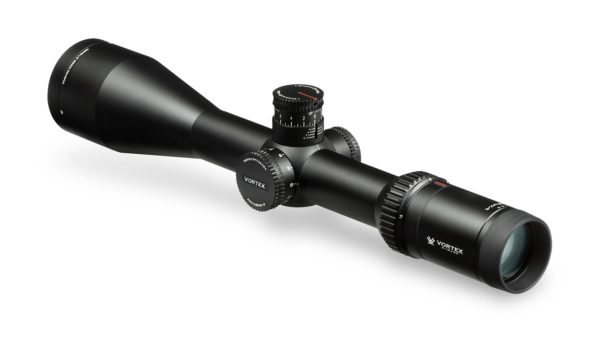

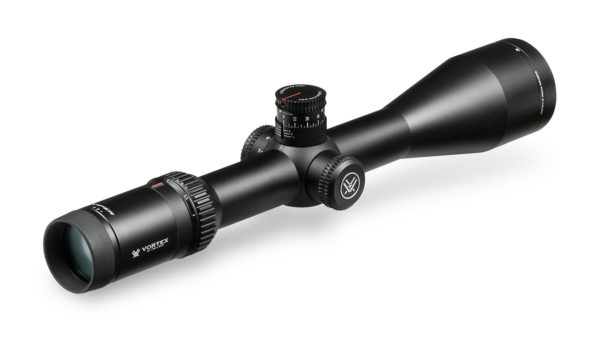

Vortex Viper HS LR 4-16X50 Dead-Hold BDC (MOA)
Want to extend your effective shooting range at distances where bullet drop and wind drift become critical? Take a look at the Vortex Viper HS LR 4-16X50 Dead-Hold BDC (MOA) riflescope. The LR stands for long range – and this scope means it. This riflescope features an exposed target-style elevation turret built for dialing elevation at extended ranges. The capped windage turret maintains the scope’s sleek lines and prevent it from hanging up on clothing, rifle cases or pack scabbards.
Viper HS LR riflescopes feature an advanced optical system highlighted with a 4x zoom range for magnification versatility. A forgiving eye box with increased eye relief gets shooters on target quickly and easily. Built on an ultra-strong 30mm one-piece machined aluminum tube for increased windage and elevation travel and optimal adjustment.
Viper HS LR 4-16×50 Dimensions (in inches)
- Protective lens caps
- 4-inch sunshade
- Lens cloth
- Magnification 4-16x
- Objective Lens Diameter 50 mm
- Eye Relief 4.0 inches
- Field of View 27.4-7.4 ft/100 yds
- Tube Size 30 mm
- Elevation Turret Style Tactical
- Windage Turret Style Capped
- Elevation Adjustment Graduation 1/2 MOA
- Windage Adjustment Graduation 1/4 MOA
- Elevation Travel Per Rotation 24 MOA
- Windage Travel Per Rotation 12 MOA
- Max Elevation Adjustment 75 MOA
- Max Windage Adjustment 50 MOA
- Parallax Setting 50 yards to infinity
- Length 13.7 inches
- Weight 21.4 oz
- Model VHS-4307-LR
- Reticle Dead-Hold BDC (MOA)
- Product Manual PDF
- Reticle Manual PDF
- XD™ Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
- XR™ Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
- Tube Size 30 mm diameter provides maximized internal adjustment and strength.
- Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
- Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
- Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof Rugged construction withstands recoil and impact.
- Hard Anodized Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter’s position.
- ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
- Tactical Elevation Turret Exposed elevation turret provides fast, accurate and easily read elevation adjustments. Capped windage turret.
- Side Focus Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.
Internal Mechanism Design
- CRS™ Zero Stop Customizable Rotational Stop (CRS) aids in return to zero after dialing temporary elevation correction.
- Precision-Force Spring System Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
- Precision-Glide Erector System This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.
- MAG-View Fiber Optic Provides a highly visible reference point for the magnification setting.
- Radius Bar Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations.
- Fast Focus Eyepiece Allows quick and easy reticle focusing.
DEAD-HOLD BDC (MOA)
Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
